KMX-B102

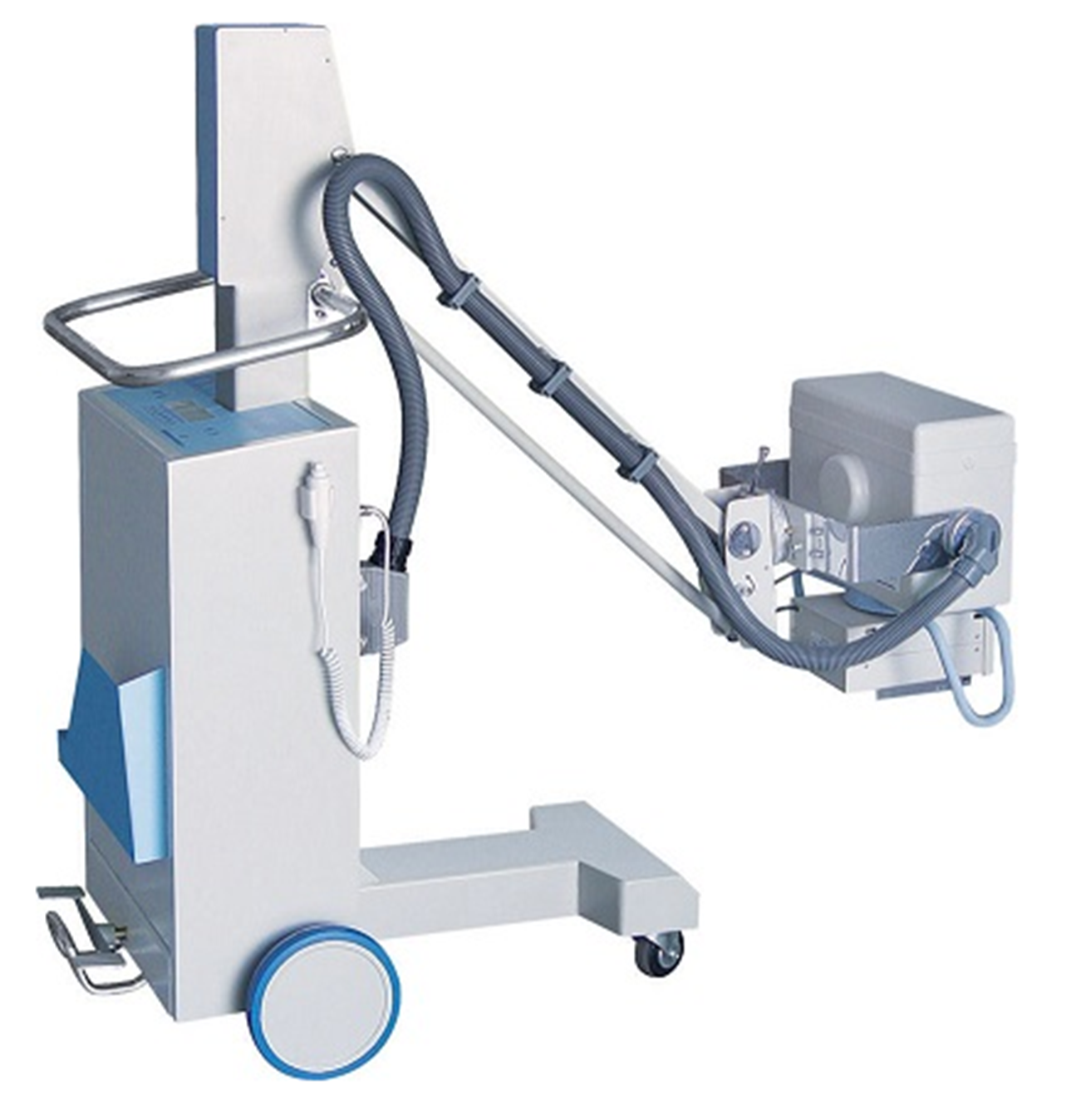

Mobile X-ray machine KMX-B102

Website: www.Labopark Scientific.com

Email: info@Labopark Scientific.net

Overview

Mobile X-ray machine KMX-B102 is an advanced x-ray imaging modality designed for better mobility and manageability during intra-hospital transit. System is equipped with 50 pre-set exposure programs with automatic back-up memory and multiple protection functions for safer use. Automatic self-test setting and alarming reduces need for maintenance. Proximal as well as remote accessibility controllers make it more versatile to use.

Specifications :
Inverter Frequency 50 kHz
Tube Voltage 40 kV – 100 kV (interval 1 kV)
Operational Access Wired/Wireless Control
Current 1.0–125 mAs (43 steps)
Power Rating 3.5 kVA
Internal Resistance ≤ 1 Ω
Exposure Parameters
VoltageCurrentRadiographic Density
40 kV - 49 kV63 mA1 mAs - 125 mAs
50 kV - 59 kV55 mA1 mAs - 110 mAs
60 kV - 69 kV45 mA1 mAs - 90 mAs
70 kV - 79 kV40 mA1 mAs - 80 mAs
80 kV - 89 kV36 mA1 mAs - 71 mAs
90 kV - 99 kV32 mA1 mAs - 63 mAs
100 kV - 110 kV20 mA1 mAs - 40 mAs
Power Supply Voltage : 220 V ±10% Frequency : 50Hz
Dimensions 1220 x 900 x 1460 mm
Weight 207 Kgs
Features :
  • - High frequency X-ray generation
  • - High quality X-ray monolight technology
  • - Exposure current: 1.0-180mAs (46 steps)
  • - 50 built-in exposure control programs
  • - Accurate X-ray penetration
  • - Flexible and easy source orientation
  • - Symmetrical collimator
  • - Mobile table (optional)
Applications :

Used throughout the hospital from in-patient, to NICU, operating room, and emergency room as well as polyclinics to perform projection radiography readily on bedbound or critical patients for convenience.
