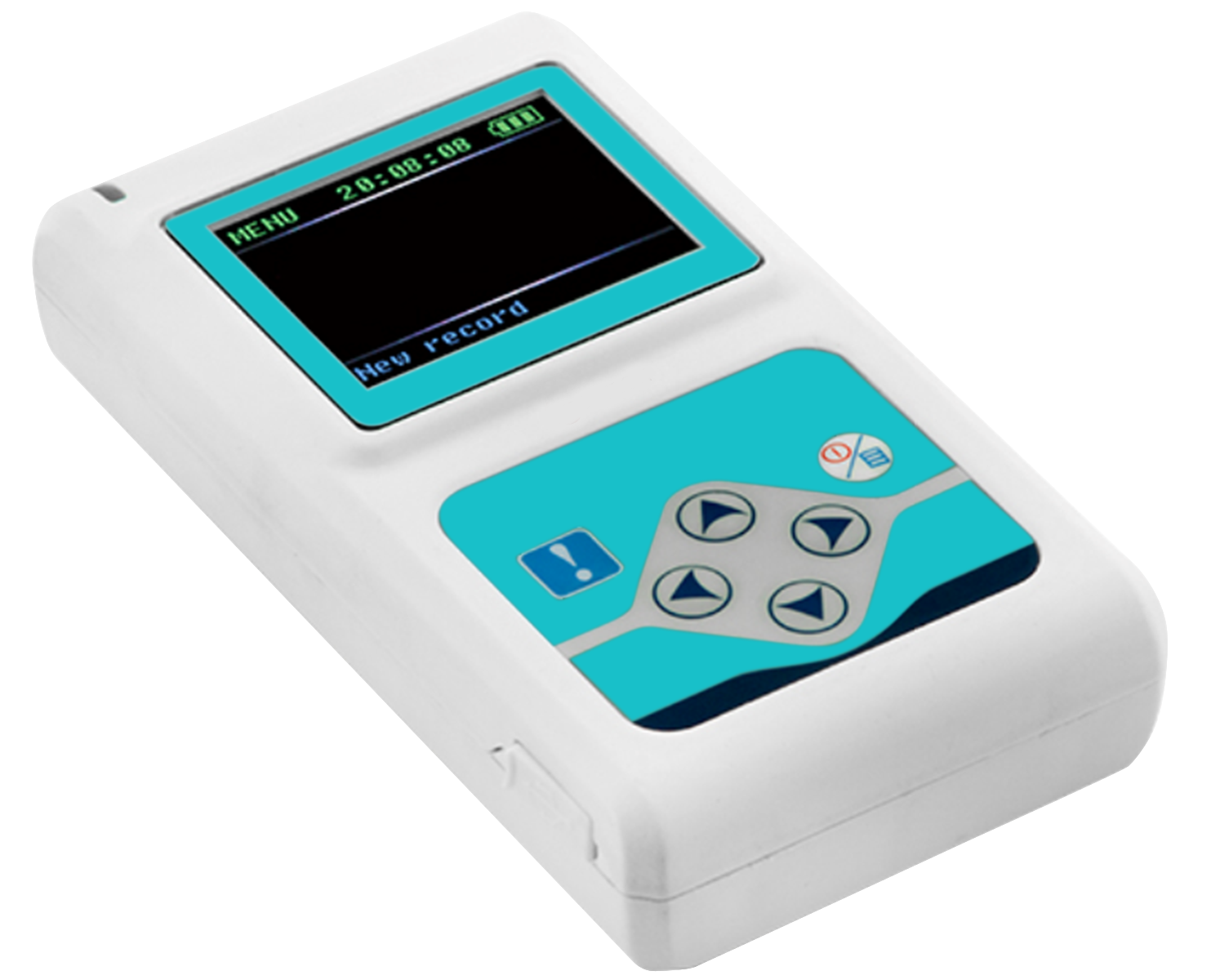

Holter Monitor KHM-A100 is a 24-hour ambulatory ECG recorder designed to record real-time ECG. System is equipped with OLED screen for waveform preview, record review and event marking. Integrated frequency filters allow anti-jamming and aseismic capability for error free waveforms. Data storage up to 2GB using TF card enables original data to be stored without compression. System performs 12-lead synchro-analysis for distortion-free QRS detection.
| Display | OLED 160 x 128 dot matrix display |
| Storage | Built-in TF card storage for up to 2 GB |
| Standard Sensitivity | 10 mm/mV ± 5% |
| Sensitivity Shift | ≤ ± 10% |
| Channel Display | 12 Channel |
| Scan Speed | 25 mm/s ± 5% |
| Pacing Analysis | Dual chamber pacing, Atrial pacing, Ventricular pacing module Ventricular Pseudofusion and Ventricular asynchronous module |
| Arrhythmia Analysis | MCSSTM and TMCATM |
| ECG-Analysis | ST segment analysis , HRT analysis, T-Wave alternation,QTD (QT dispersion) VCG (vector cardiogram), VLP (ventricular late potential) and TVCG (time vector cardiogram) analysis |
| Heart-rate Analysis | Short range : 5 minutes Long range : 1 hour Continuous : 24 hours |
| Sampling | Sampling Accuracy : 12 Bit Rate of Sampling : 10 kHz |
| Batteries | 2 AA batteries |
| Interface | USB 2.0 |
| Scale Voltage | 1mV ± 5% |
| Noise | ≤ 30µV |
| CMRR | ≥ 60 dB |
| Time Constant | ≥ 3.2 s |
| Polarization voltage | ± 300 mV (DC) |
| Dimension | 111 x 60 x 25 mm |
| Weight | 105 g |
Used in cardiology center to diagnose and detect symptoms of various heart disease and arrhythmias, determine a patient’s response to drug therapy, function of pacemaker and reveal trends or changes in heart function during normal routine activities.
