KHA-C100

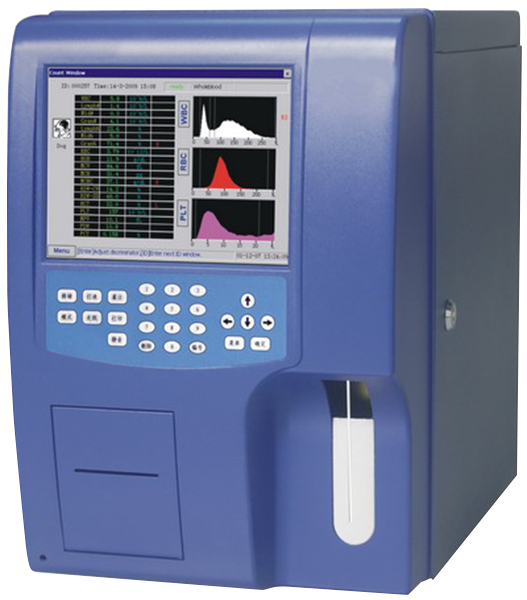

Veterinary Haematology Analyser KHA-C100

Website: www.Labopark Scientific.com

Email: info@Labopark Scientific.net

Overview

Veterinary Haematology Analyser KHA-C100 is a fully-automated multi-species 19 parameter 3-part WBC differentiation benchtop blood cell counter unit. System features high resolution color LCD display with 12 pre-defined and 4 user-defined programs (optional) for accurate species-specific analysis. Internal software enables auto reverse flush and high voltage burning, clog clearing for blockage removal.

Specifications :
Type Fully automated 3-part differential system
Throughput 30 samples/hr
Principle of Operation Impedance, SFT method
Accuracy (CV %) WBC(109/L) : 2.0 %
RBC (1012/L) : 1.5 %
HGB (g/L) : 1.5 %
MCV (fL) : 0.5 %
PLT (109/L) : 4.0 %
Sample Mode Pre-diluted
Whole blood
Screen Display High resolution large color LCD
Resolution 800 x 600
Sample Volume Pre-diluted : 20 µL
Whole blood : 9 - 20 µL
Reagents Non-toxic cyanide-free reagents
Connectivity RS232, USB
Printer Built-in Thermal printer
Storage 35,000 records with 3 histograms
Operating Temperature 10 °C to 30 °C
Humidity 0.7
Maintenance Auto reverse flush and high voltage burning, clog clearing
Power Supply AC 100 V – 240 V, 50 / 60 Hz
Dimensions 273 × 420 × 415 mm
Weight 16 Kgs
Features :
  • - Throughput: 30 samples/hr
  • - Parameters : WBC, GRA#, LYM%, MON%, NEU%, BAS%,EOS%,#LYM,#EOS,#MON,#BAS, RBC, HGB, MCHC, MCH, MCV, PDW, RDW-CV, RDW-SD, HCT, PLT,MPV, P-LCR, PCT and PLCC with 2 Histograms for WBC, RBC and PLT and 4 scatter grams for WBC differential
  • - Performs 19 parameter testing with 3 histogram
  • - Non-toxic cyanide-free method for HGB
  • - Sample modes : Whole blood and Prediluted
  • - 12 Pre-defined species-wise programs with 4 programmable settings
  • - Suitable for 7 species including Canine, Feline, Equine, etc
  • - RS232 and USB connectivity for data transfer
  • - Alert alarms as per species selected
  • - Soft touch-key user panel
  • - Stores up to 35,000 patient records
  • - Built-in Thermal printer
  • - External Printer (Optional)
Applications :

Used in veterinary diagnostic clinical laboratories and hospitals to characterize blood cells, determine cell count and cell volume for in-vitro species-specific pathological diagnosis of blood samples to meet qualifying performance requirements and standardized results.
